How Hot Is Your Roof? – Insulated Rooflines and Shingle Temperature

Asphalt Shingles And Roof Temperature

One of the most common questions I get when I describe homes with insulated rooflines is, “What does that do to the shingles?” Some roofing companies have made a lot of noise about this topic, saying that if the shingles can’t conduct heat downward into the attic, their lifetime will be greatly reduced.

What’s the truth about this claim? How much does shingle temperature really rise if the insulation is right at the roofline and the attic isn’t vented? Fortunately, it’s easy to find out because the Florida Solar Energy Center (FSEC) has done the research.  In a paper titled Literature Review of the Impact and Need for Attic Ventilation in Florida Homes (pdf), Danny Parker covered the gamut of attic ventilation research through about 2005.

In the summer of 2000, FSEC studied the issue of sealed versus vented attics. Click the title of the paper above to download the paper and read the details.  The experiment described here starts on page 15, in the section titled Testing at the Flexible Roof Facility at Florida Solar Energy Center.  The test conditions for the vented and sealed attics are described in the report:

For these tests, both attic systems consist of conventional roof trusses with 1/2″ plywood sheathing covered by 15 lb. roofing felt and dark (absorptance = 0.97) composition shingles. The “conventional” attic/roof system contains R-19 fibrous batt-type insulation at the ceiling plane. This attic is vented by outdoor air using soffit and ridge vents and is hereinafter referred to as the “vented” attic. The other attic/roof system contains 6 inches of spray-applied, open-cell foam insulation system at the roof plane (R-value ~ 22 hr ft2 °F/BTU) that serves to both insulate the attic space from the outdoor environment and seal it from outdoor ventilation airflow. There is no ceiling insulation in this test space, which is hereinafter referred to as the “sealed” attic.

On the issue of shingle temperature for vented vs. sealed attics, here are the data.  The first graph shows the actual shingle temperature for each roof, and the second graph shows the difference in temperatures.

FSEC shingle temperature insulated roofline vs vented attic

As you can see, the difference isn’t that great. The graph below shows the temperature difference throughout the day:

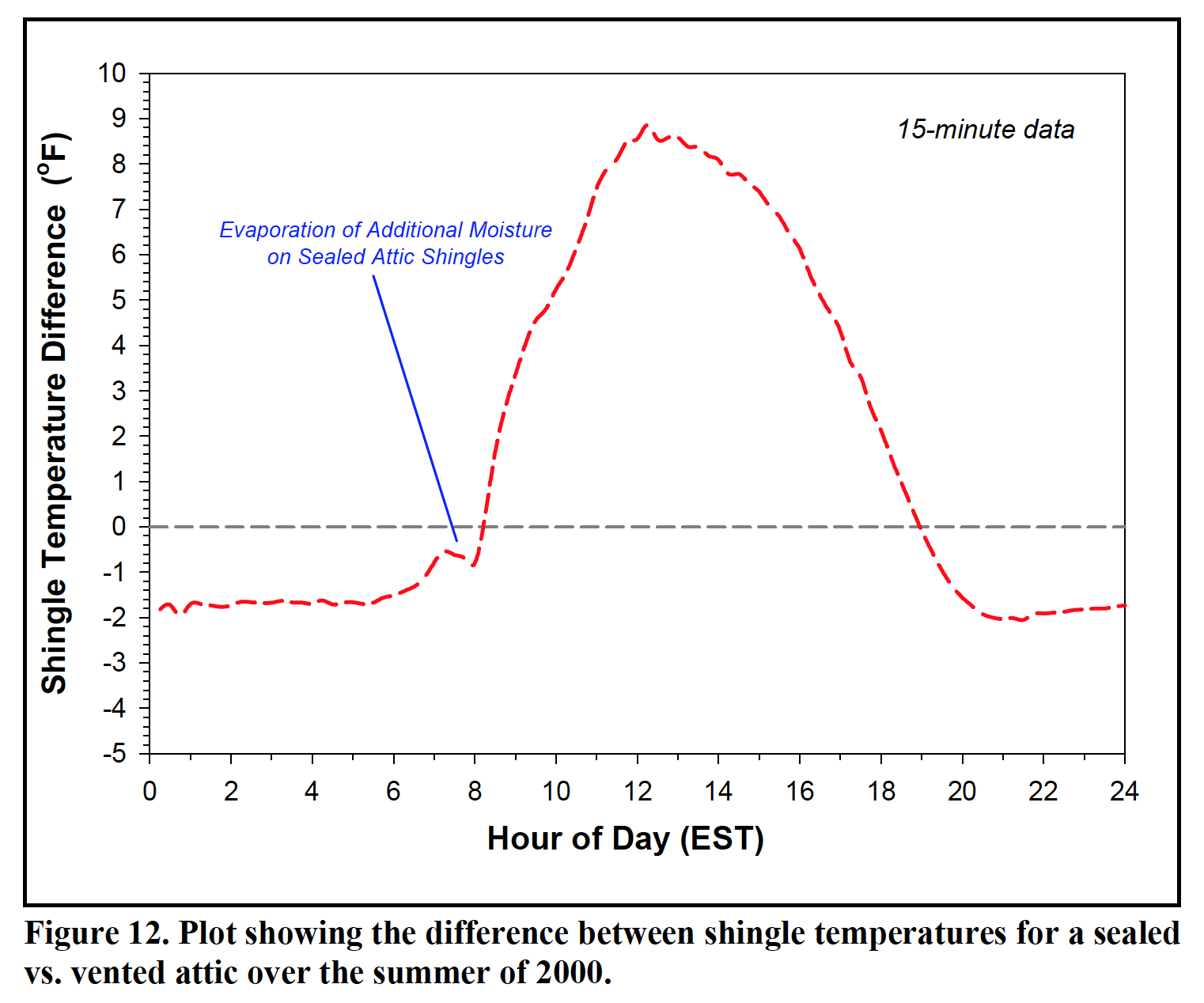

FSEC shingle temperature difference insulated roofline vs vented attic

The biggest temperature difference was about 9 °F, which occurred around noon. The average temperature difference through the day was about 2 degrees F.

This FSEC study didn’t look at shingle lifetime, but I think that adding 9 degrees to a temperature of 150 degrees won’t make much difference. What kills shingles isn’t so much the temperature. It’s the ultraviolet radiation that they’re subjected to all the time.  And what makes shingles hotter more than the nature of what’s under the roof is the color of the shingles.

Here’s a bit of anecdotal evidence for you. Southface has a building constructed with structural insulated panels that they built in 1996. The asphalt shingles have been on the insulated roofline for 14 years now. They also have a detached garage with a vented attic. There’s no difference in appearance or performance of the two roofs.

Now, let me ask you ask you this – Do you know anyone who has ever collected on a shingle warranty? The answer is probably no. Even if it’s yes, however, shingle warranties are structured so that you’re not going to collect much if you do make a claim unless you have catastrophic failure in the first couple of years. An insulated roofline will have minimal effect, and certainly will not result in catastrophic failure.



Allison A. Bailes III, PhD is a speaker, writer, building science consultant, and the founder of Energy Vanguard in Decatur, Georgia. He has a doctorate in physics and writes the Energy Vanguard Blog. He also has a book on building science coming out in the fall of 2022. You can follow him on Twitter at @EnergyVanguard.



Related Articles

Air Sealing an Attic Access the Right Way

How to Insulate a Short Attic Kneewall

A Tale of Two Roofs – Frost, Snow, and Attic Heat Loss



Comments are closed.

This Post Has 12 Comments

  1. Great post Allison. Another
    Great post Allison. Another one to bookmark for future reference. I’m sure the question will come up again with my builders and clients.

  2. Yes, this question comes up
    Yes, this question comes up over and over in this field. Be sure to download that FSEC paper, too. It’s got a lot of great info in it. The title is “Literature Review of the Impact and Need for Attic Ventilation in Florida Homes,” but the research results they cite are from all over the place.

  3. THX, Allison. DO you think
    THX, Allison. DO you think that the answer would be any different for other roofing materials, a metal roof in particular?

  4. Tom, I think metal roofs
    Tom, I think metal roofs wouldn’t show as big a temperature difference because they reflect a lot of the solar radiation. White shingles keep vented attics more than 15 degrees cooler than black shingles, and a reflective metal roof would do more than that. I haven’t seen anything comparing vented attic to insulated roofline with metal roofing, though. The best would be a metal roof on an insulated roofline with a one inch air gap to allow venting between the roofing and roof deck. They call that a ‘ventilated double roof’ in the FSEC paper.

  5. THX
    I
    THX
    I’ll read the article. I have an insulated (closed cell) roof that needs its final finish. I have planned on standing seam metal. I have been reading up what Joe St. has to say, which is a lot.

    BTW, dark roofs, way up here in the upper right corner of the US don’t seem to have the same implications as where you are! 🙂

  6. Very true, Doc. You need all
    Very true, Doc. You need all the heat you can coax into your home in Maine, wherever you can get it from.

  7. Another great post Allison. I
    Another great post Allison. I’ll be sure to download the report. This is the first question I get asked when I discuss the topic with builders. We insulated the roofline of our 84 year old home this Summer.

  8. What about increased moisture
    What about increased moisture content under the roof sheeting?

  9. “Hmmm. Today I think I
    “Hmmm. Today I think I’ll crush some wives tales…”

    Out of the park with 3 guys on base!

    Thanks for doing this Allison! So helpful!

    I remember somewhere comments about color causing delta t of 30. Love to see that point in there.

    Also, primary importance of venting is to avoid ice damage by keeping roof surface sub freezing in high snowfall areas.

  10. 9 degrees can make a huge
    9 degrees can make a huge difference if you were describing 1st -v- 2nd -v- 3rd degree skin burns. Why would it be much different with a roof shingle? I have a roof with a 2/12 pitch, aka hot mop roofing. It layed perfectly flat prior to open cell foam being installed against the underside. (No pebble protection) By August, the roof had more blisters and ripples than a man could count. Once the foam was removed from this area, the blisters settled but the damage was done.

  11. Hi Allison, great article and
    Hi Allison, great article and great website, keep up the good job!
    Was wondering if there is a good roofing solution for a country like Japan with cold and sunny winters (where you you want to get as much sun’s radiation as possible inside your building) and darn hot summers at low latitude with frying sunlight.
    Is there any strategy to change the albedo of the roof according the seasons? To block that radiation in summer, but let it in in winter?

    Thanks,
    Benoit

  12. Oops…. Correction
    Oops…. Correction warranted: I meant to say Closed Cell. Sorry for the type error.
